مكان المنشأ:
شنغهاي، الصين
اسم العلامة التجارية:
carterberg
إصدار الشهادات:
IATF16949
رقم الموديل:
سي بي-3

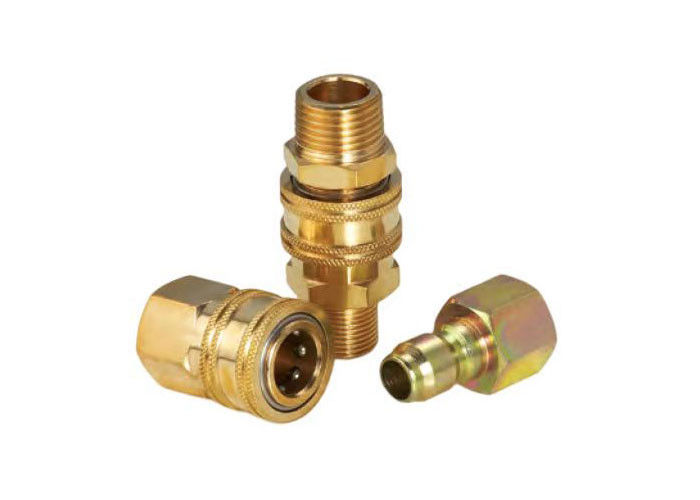

Compatible with PARKERA HANSEN ST and FOSTER FST Series American type Brass coupling
Applications: The LST Series are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steam washers, carpet cleaners and mold coolant lines and many other non-valved applications
Specifications:
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 |
| Rate Pressure(PSI) | ||||
| Brass Cplr/Npl | 1000 | 1000 | 1000 | 1000 |
| SS Cplr/Npl | 2000 | 2000 | 1500 | 1500 |
| Rated Flow(GPM) | 3 | 6 | 12 | 12 |
| Temperature Range(std seals) | -20℃ to +120℃ | |||
Features:
1.The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
2.LST couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3.LST nipples are available in brass and zinc-Plated steel. The ball locking grooves of the steel LST nipples are case hardened for resistance to brinelling where high cycle rates and pressure surges are encountered.
4.The LST is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
5.Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
| PART NO. | LS | ￠ D | HEX1 | A | T |
| LST-01SF | 27 | 18 | 14 | 10 | NPT1/8 |
| LST-02SF | 37 | 24 | 19 | 12 | NPT1/4 |
| LST-03SF | 41.5 | 29 | 24 | 13 | NPT3/8 |
| LST-04SF | 51 | 33 | 29 | 15 | NPT1/2 |
| LST-06SF | 53.4 | 40.9 | 38 | 19 | NPT3/4 |
| LST-08SF | 66 | 50.5 | 44.45 | 22 | NPT1 |
| PART NO. | LS | ￠ D | HEX1 | A | T |
| LST-01SM | 29 | 18 | 14 | 10 | NPT1/8 |
| LST-02SM | 39.5 | 24 | 19 | 12 | NPT1/4 |
| LST-03SM | 43 | 29 | 24 | 13 | NPT3/8 |
| LST-04SM | 53 | 33 | 29 | 15 | NPT1/2 |
| LST-06SM | 56.7 | 40.9 | 38 | 19 | NPT3/4 |
| LST-08SM | 61.1 | 50.5 | 44.45 | 24 | NPT1 |
| PART NO. | LS | ￠ D | HEX1 | A | T |
| LST-01PF | 27 | 17 | 14 | 10 | NPT1/8 |
| LST-02PF | 37 | 19.5 | 17 | 12 | NPT1/4 |
| LST-03PF | 41.5 | 22.5 | 22 | 13 | NPT3/8 |
| LST-04PF | 51 | 26 | 27 | 15 | NPT1/2 |
| LST-06PF | 52 | 28.5 | 30 | 20 | NPT3/4 |
| LST-08PF | 60 | 30.5 | 38 | 22 | NPT1 |
| PART NO. | LS | ￠ D | HEX1 | A | T |
| LST-01PM | 29 | 17 | 11 | 10 | NPT1/8 |
| LST-02PM | 39.5 | 19.5 | 14 | 12 | NPT1/4 |
| LST-03PM | 43 | 22.5 | 17 | 13 | NPT3/8 |
| LST-04PM | 53 | 26 | 22 | 15 | NPT1/2 |
| LST-06PM | 57.2 | 28.5 | 27 | 19 | NPT3/4 |
| LST-08PM | 62.4 | 30.5 | 35 | 22 | NPT1 |
