مكان المنشأ:
الصين
اسم العلامة التجارية:
carterberg
إصدار الشهادات:
IATF16949
رقم الموديل:
سي بي-FH

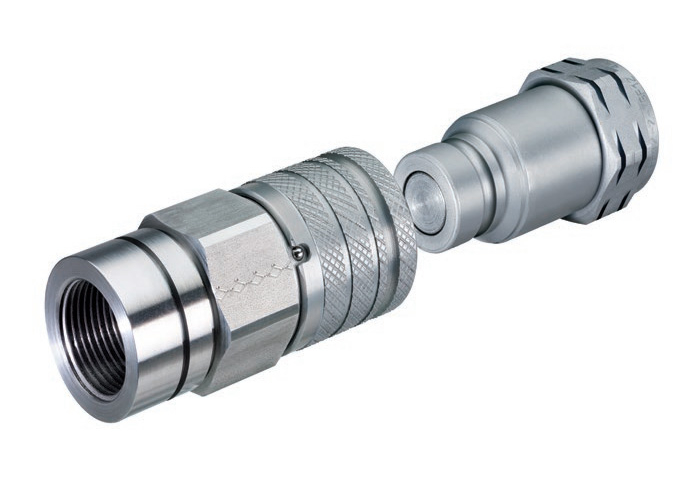

ISO 16028 Flat-Face Couplings – Steel/316L, Ball Lock, 350-400 bar, BSP/NPT/SAE
Our ISO 16028-compliant flat-face coupling series features a ball-lock mechanism designed for reliable hydraulic connections in industrial and mobile applications. Available in carbon steel or 316L stainless steel, the surface is treated with either Zn-Fe (Cr III) or Zn-Ni for enhanced corrosion resistance. Thread options include BSP, NPT or SAE, and the standard sealing material is NBR (with FKM or EPDM available on request). Engineered for a working temperature range of –25 °C to +100 °C and a continuous operating pressure between 350 bar and 400 bar, these couplings are not rated for connection or disconnection under pressure. Ideal for export-oriented B2B platforms, this specification offers global compatibility and clear purchasing guidance for OEMs and hydraulic system integrators.
| Nominal size | Working pressure | Rated flow(ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| FH | ISO | Mpa | l/min | l/min | Male(Mpa) | Female(Mpa) | Coupled(Mpa) | cc |
| 6 | 6.3 | 40 | 12 | 25 | 180 | 120 | 200 | 0.006 |
| 10 | 10 | 35 | 23 | 50 | 160 | 140 | 170 | 0.012 |
| 12 | 12.5 | 35 | 45 | 90 | 140 | 140 | 170 | 0.02 |
| 16 | 16 | 35 | 74 | 125 | 140 | 140 | 170 | 0.026 |
| 19 | 19 | 35 | 100 | 160 | 130 | 120 | 140 | 0.03 |
| 25 | 25 | 35 | 189 | 260 | 100 | 100 | 110 | 0.035 |
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
